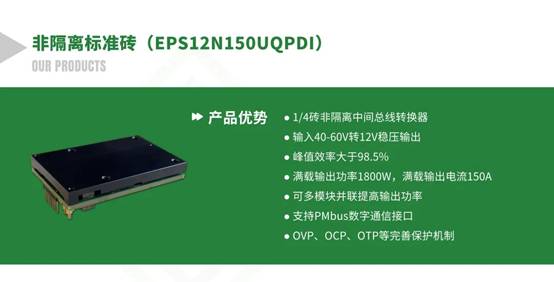

Nanjing Nenglixin Technology Co., Ltd. (EPIC) has launched a high-density 1/4 brick non isolated DC/DC digital power supply module with built-in digital interface - EPS12N150UQPDI. This digital power supply module has an input voltage range of 40-60V and provides a 12V non isolated but fully stabilized output voltage, with a full load output power of up to 1800W. Widely used in the new generation of high-end network equipment products and industrial equipment, meeting increasingly strict efficiency standards. Meanwhile, the EPS12N150UQPDI digital power module supports passive current sharing and parallel connection to meet higher power requirements. This product also has a PMBus interface that can be applied for configuration, monitoring, and control, providing users with intelligent power management solutions.
The EPS12N150UQPDI digital power module relies on the cutting-edge magnetic integration technology of Nenglixin to significantly simplify the power supply topology, reducing the number of core power devices by 40% compared to similar products, thereby demonstrating a huge cost advantage and truly achieving a dual lead in performance and cost.
main performance
The EPS12N150UQPDI digital power module can provide up to 1800W of output power, with a half load efficiency of 98.5% at an input voltage of 48V, and a size of 58.4 × thirty-six point eight × 14.8mm, 1/4 brick type in accordance with DOSA standards; The input voltage range is 40V to 60V, providing an output current of up to 150A. The back panel of this module product adopts a heat dissipation design, with a working temperature range of -40 ℃~110 ℃. The product design complies with IEC/EN/UL 62368-1 safety standards, and advanced overvoltage, overheating, and short circuit protection mechanisms can extend its service life.
About Nenglixin Technology
Nenglixin provides customers with high-efficiency, high power density, low-cost, modular power supply products and solutions. Nenglixin's advanced power products provide a full stack solution for direct current to direct current (DC-DC) conversion from 400V to 0.6V, and from 100W to 10000W, leading the world in efficiency, power/current density. Nenglixin provides reliable, green, and low-cost electricity solutions for AI intelligent computing facilities, helping the digital economy and achieving green carbon reduction.
